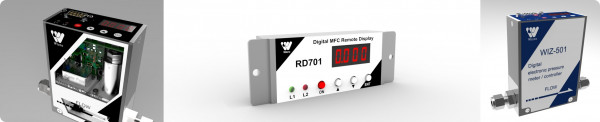

Digital Thermal Mass Flow Controller with Display [10 SCCM to 30 SLPM]
- SPECIFICATIONS
Flow Range | 10 SCCM - 30 SLPM (N2) |
Accuracy | ≤ ± 0.25 of Full Scale |
Control Range | 2 - 100% of Full Scale |
Response Time | ≤ 1 sec |
Max. Pressure | 10 bar |
Temperature Range | 5 - 50 ℃ |
Power Supply | +15 VDC or +24 VDC |
Signal In/ Out | 0-5V, 0-10V, 0-20mA, 4-20mA (Option) |
Interface | RS485, Modbus |
Display Direction | Front/ Top (Selection) |
