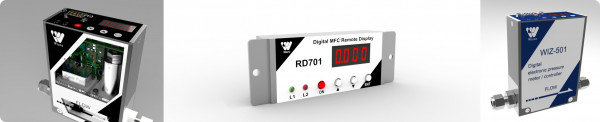

Digital Electrical Pressure Controller with Display [0 to 1 bar, 1 - 50 bar]
- SPECIFICATIONS
Flow Range | 0 - 1 bar (abs), 1 - 50 bar (Case by Case) |
Accuracy | ≤ ± 0.5 of Full Scale |
Control Range | 2 - 100% of Full Scale |
Response Time | ≤ 1 sec |
Max. Pressure | 50 bar |
Temperature Range | 5 - 50℃ (Accuracy Warranty 15 - 35℃) |
Power Supply | +15 VDC or +24 VDC |
Signal In/ Out | 0-5V, 0-10V, 0-20mA, 4-20mA (Option) |
Interface | RS485, Modbus |
Display Direction | Front/ Top (Selection) |
